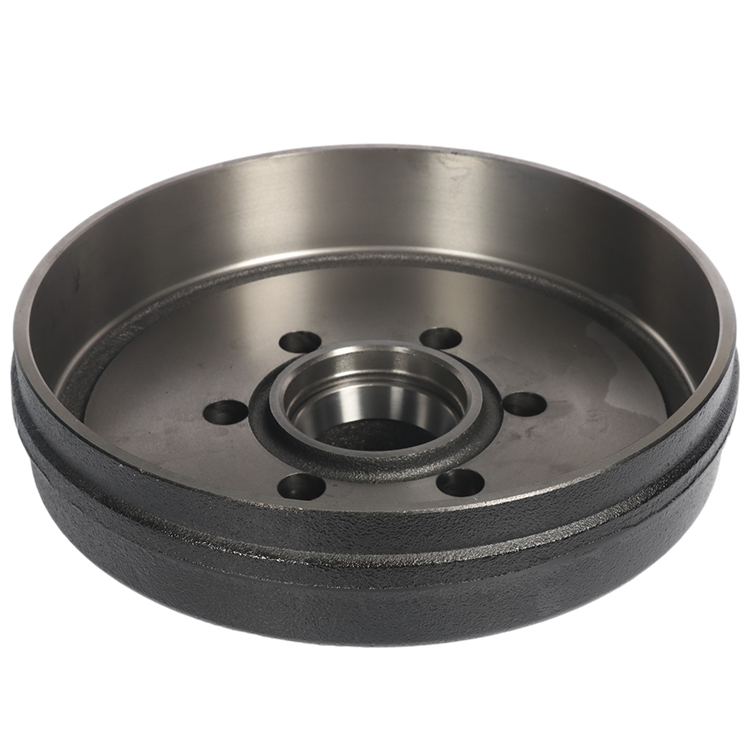

12"*2 Inch Trailer Brake Drum

Name: 12quot2 Inch Trailer Brake Drum
Brand: Airui
Price: 1 USD

Buy cheap 12"*2 Inch Trailer Brake Drum product

Brand Name : Airui

Model Number : AC002

Certification : ISO/TS16949

Place of Origin : Shandong，China

MOQ : Deliberations

Price : Deliberations

Payment Terms : L/C, T/T

Supply Ability : 10000 Piece/Pieces per Month

Delivery Time : 5-8 work days

Packaging Details : carton, pallet ,plywood case

Use : Trailer Axle

Size : 12 inch

Hub drum body : 5*4.5"/5*4.75"/5*5.0/5*5.5 bolts

Dust cap : O.D. 62.2 mm drive in

Oil seal : I.D. 57.15 mm single clip

Wheel Nut : 1/2" cone wheel nut

bearing : 25580 & 15123

Max Payload : 7000 lbs

Contact Now

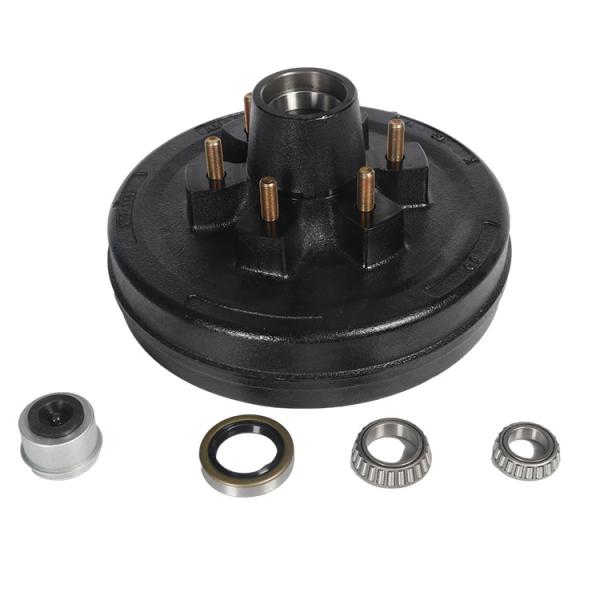

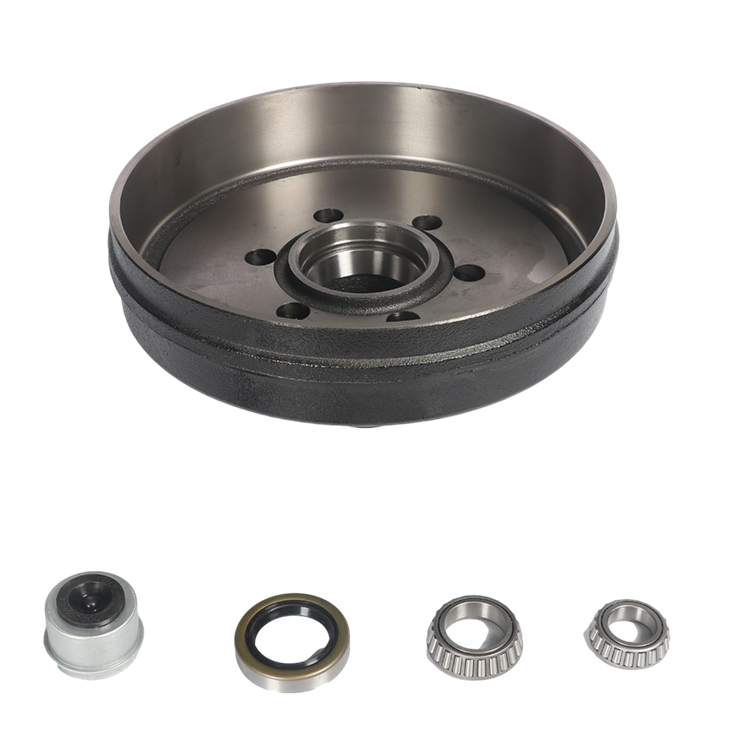

6 Studs 12"*2 Inch Brake Drum with bearings for Trailer Axle

Detailed Specification

1. PCD: 4-4", 5-4. 5", 5-4. 75", 5-5", 5-5. 5", 6-5. 5", 8-6. 5"

2. Bearing:

L-44610, L-68111, LM-67010, 15245, 14276.
L-44643, L-44649, L-68149, LM-67047. LM-67048, 15123, 14125A, 25580.

3. Size: 120mm, 6inch, 9inch, 10inch, 12inch, 12 1/8inch

4. 1/2 inch stud, 7/16

5. with bearing cup pressed

6. supply you with all parts for axles.

Hub Drum	Bearing	Oil seal	Dust cap	Wheel nut
AC00300300A	L68149&L44649	AC00300201	AC00300601	AC00500302A
Hub drum body c/w 5 * 4.5" bolts & L68111 / L44610 bearing race	inner / outer bearing	LD. 43.69mm single lip	O.D. 50.5mm drive in	1/2" cone wheel nut
AC00300300C	L68149& L44649	AC00300201	AC00300601	AC00500302A
Hub drum body cJw 5 * 4.75" bolts & L68111 / L44610 bearing race	inner / outer bearing	LD. 43.69mm single lip	O.D. 50.5mm drive in	1/2" cone wheel nut
AC00300300D	L68149&L44649	AC00300201	AC00300601	AC00500302A
Hub drum body c/w 5 * 5.0" bolts & L68111 / L44610 bearing race	inner / outer bearing	LD. 43.69mm single lip	O.D. 50.5mm drive in	1/2" cone wheel nut
AC00300300E	L68149& L44649	AC00300201	AC00300601	AC00500302A
Hub drum body cNv 5 * 5.5" bolts & L68111 / L44610 bearing race	inner / outer bearing	LD. 43.69mm single lip	O.D. 50.5mm drive in	1/2" cone wheel nut

12"*2 Inch Trailer Brake Drum

Our main products are standard models: 7inch trailer brake drum, 10inch trailer brake drum and 12inch trailer brake drum(Compatible with standard axles from most manufacturers, including Dexter, Lippert (LCI), and AL-KO).In addition, we can also provide customized services to customers worldwide.
