60mm 5 Bolt Trailer Axle

Brand Name : Airui

Model Number : AC098

Certification : ISO/TS16949

Place of Origin : Shandong，China

MOQ : Deliberations

Price : Deliberations

Payment Terms : L/C, T/T

Supply Ability : 20000 Set/Sets per Month

Delivery Time : 5-8 work days

Packaging Details : 1. Hot shrink poly per set/box and ten boxes in one carton. 2. Pallet packing. 3. As your requirements

Use : Trailer Parts

Max Payload : 6000-7000 lbs

Size : 12 inch

Material : Steel

Quality : 100% Guaranteed

Contact Now

3500 lbs spindle 84 straight axle 60 mm tube 5 bolts 114.3 PCD trailer axle with 10" brake and drum



Questions that lead the user to the right axle:

LOAD CAPACITY: the load rating of an axle must support the maximum gross vehicle (GVW) rating. If your trailer weighs 1,000 lbs and your equipment weighs 2,200 lbs, you will need at least a 3,500 lbs capacity axle.

SPINDLE OPTIONS: the spindle options available are straight or drop. A drop spindle will give you the lower deck but limits the width available for your deck. Most common spindle choice is the straight.



NO.

Description

QTY

option 1

option 2

option 3

1

axle shaft

1

50mm Rd / Sq solid

60mm Rd / Sq solid

76*6mm round tube

2

mounting plate

2

AT01200105

AT01200110



3

12" brake plate

2

AZ011UR

AZ025L/R

AZ003L/R

4

bolt, washer & nut

8

AC00100501/2/3





5

oil seal

2

AC00200400

AT01700302



6

inner bearing

2

25580/20





7

12" hub drum

2

AC00200300

AC00200300C



8

wheel nut

12,16

1/2"-10UNF





9

outer bearing

2

15123/45

14125A/76



10

flat washer

2

AC00201001





11

castle nut

2

AC00200701





12

split pin

2

AC00200404





13

dust cap

2

AC00200601

AC00200601B

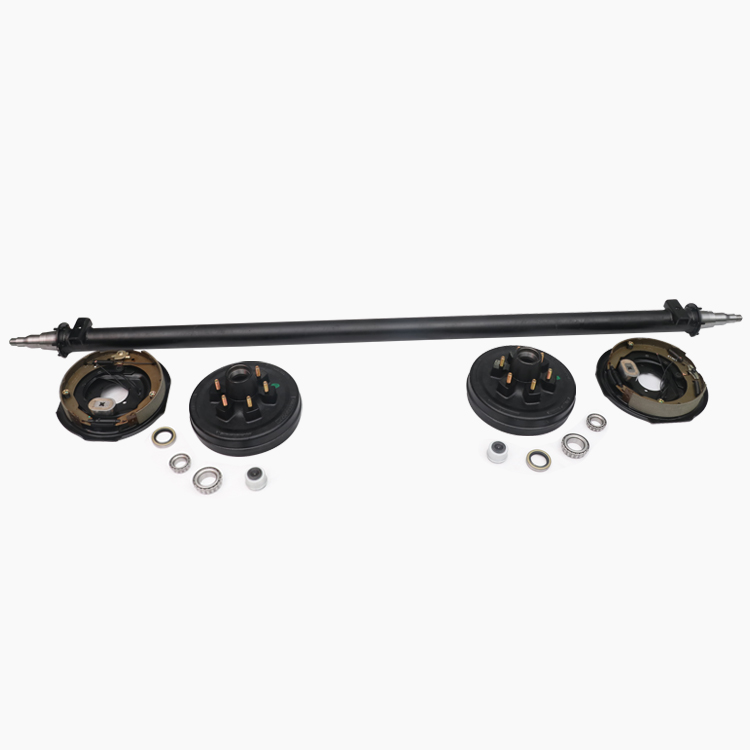

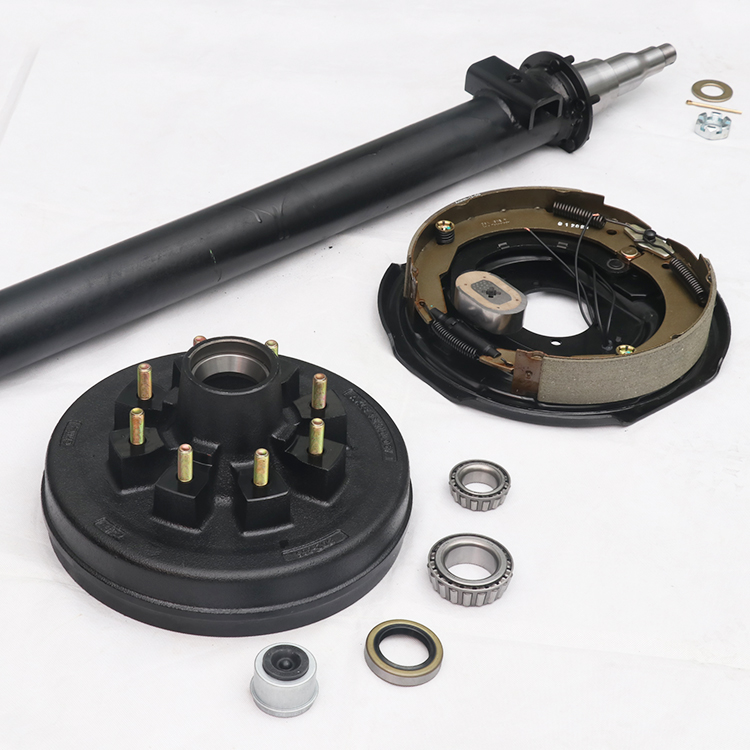

60mm 5 Bolt Trailer Axle60mm 5 Bolt Trailer Axle
